Base cabinet plans for your first build

One 24-inch base cabinet with a drawer over a door: the classic first build, and the same construction every kitchen base uses. Twelve pieces, every dimension derived and checked. Open it free, set the width your space needs, and print the packet.

Open this plan in the designer

A single 24-inch base cabinet in 3D with a drawer over a door and a countertop — Generated from the committed design. Nothing staged.

Pieces to cut: 12
Sheet goods to buy: 3
Plan sheets: 14

Sheet 1What prints

The packet is 14 sheets: a cover with the sheet index, a location drawing, the cabinet's dimensioned sheet, part details with every hole and groove, and cutting diagrams with a numbered rip-and-crosscut order. Two of them, straight from this design:

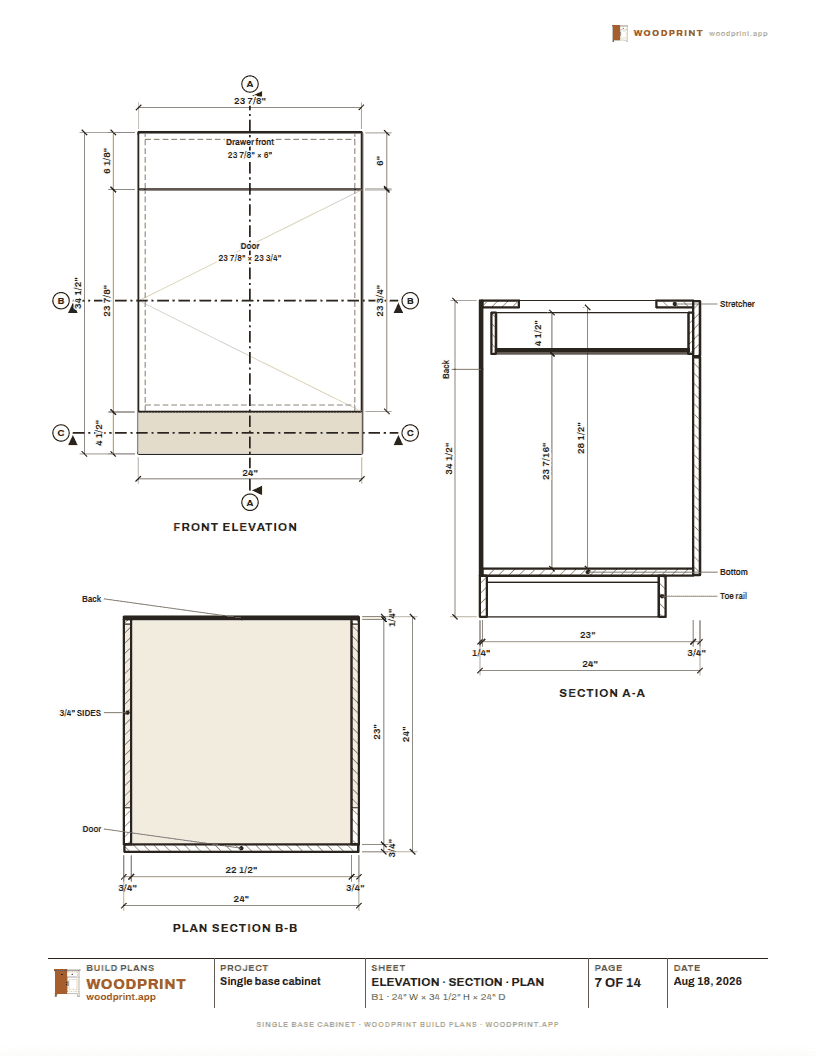

The dimensioned cabinet sheet from the base cabinet packet: front and side elevations with part callouts and running dimensions — The cabinet sheet: elevations, every part called out

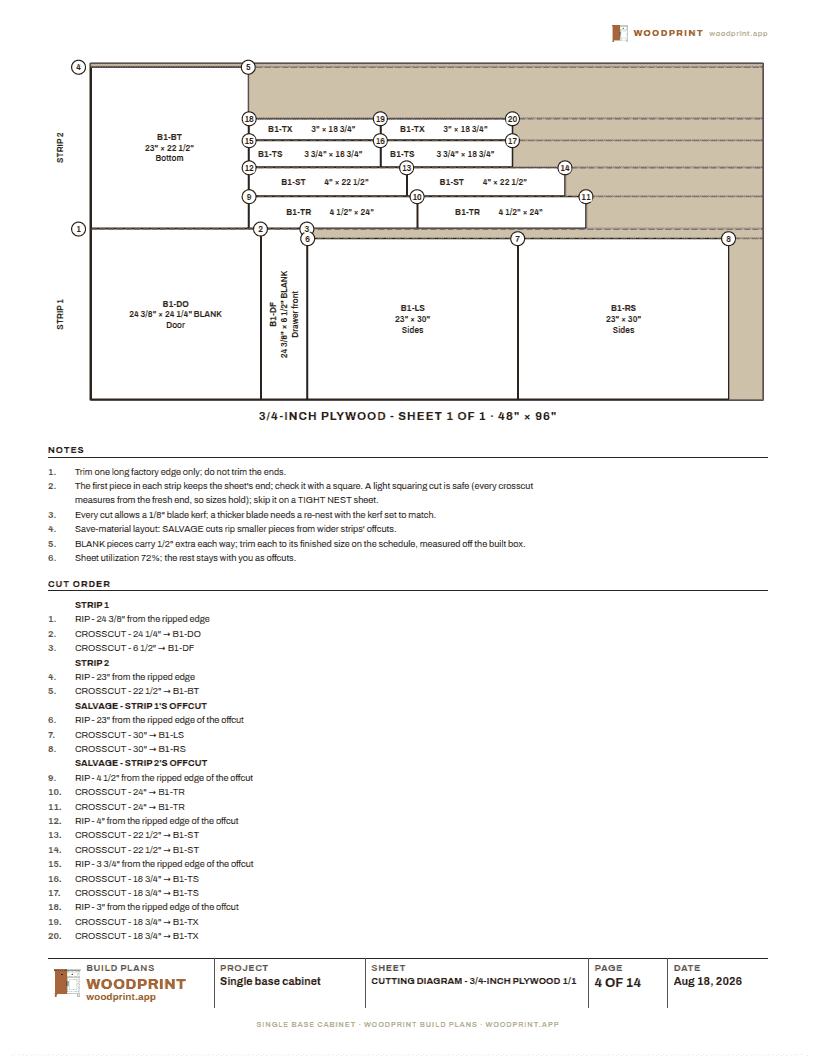

A cutting diagram sheet from the base cabinet packet: numbered pieces nested on a stock sheet with the cut order listed beside — A cutting diagram: numbered pieces, numbered cuts

Open it, resize it, print your packet.

Open this plan in the designer

Free to design, no account needed. Verify every dimension against your actual space before cutting.
